Katalyst-Spark-Guide-2-No-Internet-Troubleshooting
|
Pristine Internet |
Katalyst Spark · Guide 2 of 5 |
No Internet or Slow Speeds?
Katalyst Spark — Troubleshooting Guide
Don't worry — most connection issues can be fixed in just a few minutes by following these steps in order. Work through them one at a time and test your connection after each step.
Step-by-Step Troubleshooting
|
1 |
Check the lights. Look at the LEDs on the front of your Spark. The Internet LED should be solid on. If the Cellular LED is off, your device isn't picking up a signal — try moving it to a window or higher location. |
|
2 |
Restart (Power Cycle) your Spark. The Spark has a built-in battery, so unplugging it will not restart the device. Instead, hold the Power button down until all lights go out, then hold it again until the Power light comes back on. Wait 3–5 minutes for it to fully reconnect. This fixes most issues. |
|
3 |
Check your antennas. Make sure all antennas are firmly attached and angled upward. Loose or horizontal antennas can significantly reduce your signal strength. It is also important that each antenna is connected to the correct port — using the wrong port can prevent the device from connecting to the network entirely. |
Antenna setup — the 2 Wi-Fi antennas connect to the middle back ports; the remaining LTE/5G antennas connect to the outer side ports. Refer to the labels on each antenna.
|
4 |
Try a different location. Cellular signal can vary greatly by location. Try moving the Spark to a window, a higher shelf, or an exterior wall for a stronger signal. |
|
5 |
Hard Reset your Spark. If restarting didn't help, a hard reset often resolves persistent connection issues. Lift the plastic door on the side of the device to access the Reset button. With the device on, press and hold the Reset button for 15 seconds until the Power LED blinks rapidly, then release. Wait 3–5 minutes for the device to fully reset and reconnect. You will need to reconnect to the default Wi-Fi name (KAT-XXXX) and password from the label on the bottom of the device. |

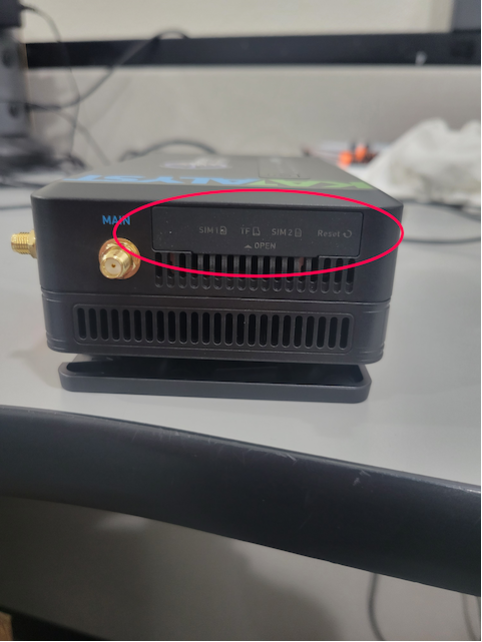

The plastic door on the side of the device — lift it to access the Reset button and SIM card slots
|
6 |
Log in and check your connection status. Open a browser and go to 192.168.8.1. Log in with Username: root and your password (the last 8 digits of your Serial Number from the device label). The Internet dashboard shows your carrier connection and SIM status. |
|
7 |
Check your signal strength. On the Internet dashboard, click the Cells Info tab to see your signal metrics. RSRP above -100 and SINR above 10 are good targets. If your numbers are poor, try repositioning the device. |
|
8 |
Run a speed test. Visit speedtest.net or fast.com to test your current speeds. If speeds are consistently below your plan's expected range, contact our support team. |
|
9 |
Still not working? If none of the steps above helped, please contact Pristine Internet support — we're happy to help! |
Logging In to Your Admin Panel
Connect to your Spark Wi-Fi, open a browser, and navigate to 192.168.8.1. Enter your credentials from the label on the bottom of the device.

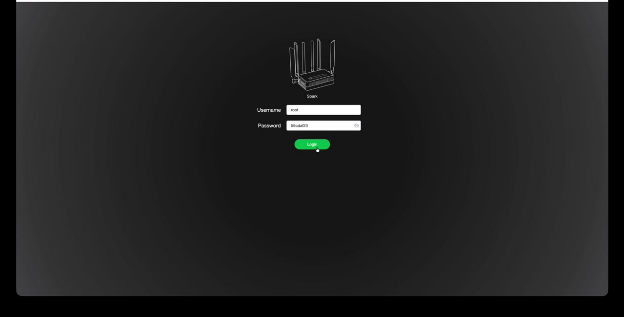

Spark admin panel login page at 192.168.8.1 — Username: root, Password: last 8 digits of your Serial Number
Internet Dashboard
After logging in, the Internet dashboard shows your carrier, SIM status, IP address, and whether you are connected. If the connection status shows an error here, contact Pristine Internet support.

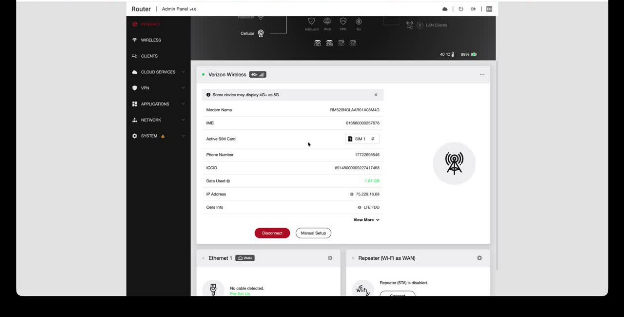

Internet dashboard — confirms your carrier connection, SIM slot, and IP address
"SIM Card Not Registered" Alert
If you log in to your admin panel and see a "SIM card not registered" warning under the Cellular section, don't panic — this is a common alert and simply means the device is having difficulty reaching the network at that moment. It does not mean there is anything wrong with your SIM card.

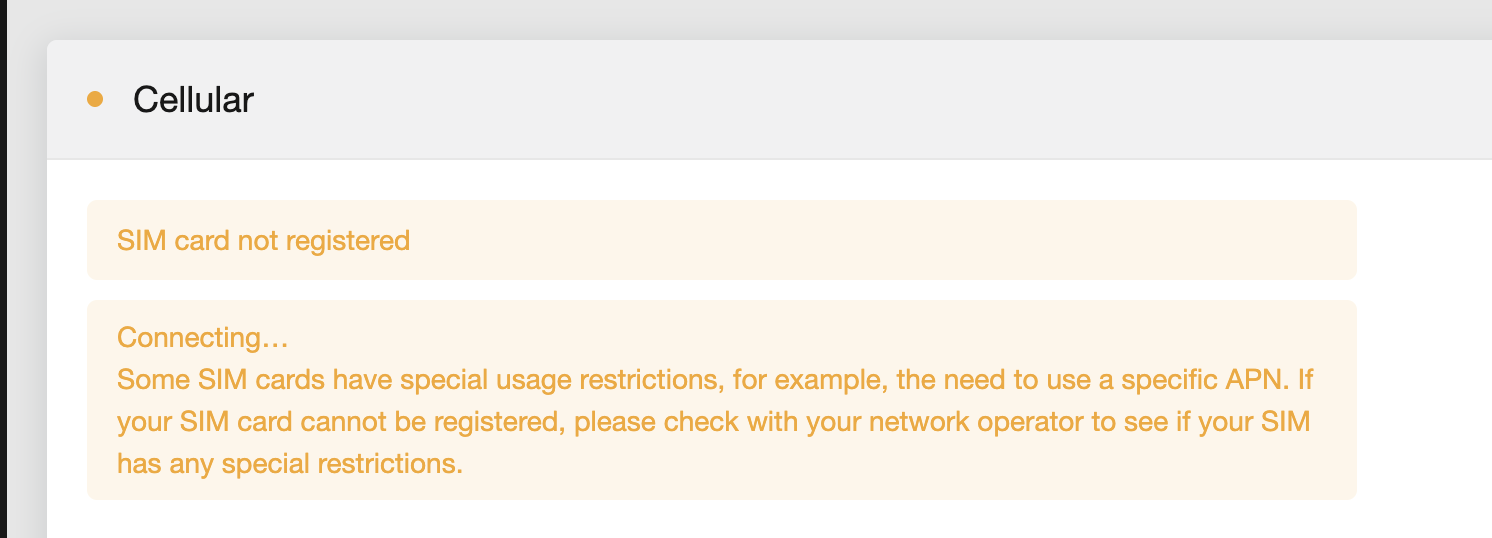

"SIM card not registered" alert — this means the network cannot currently be reached, not that your SIM is faulty
This alert most commonly appears when:
• The device is in an area with weak or no cellular signal
• The antennas are loose or connected to the wrong ports
• The device needs a restart or hard reset to re-establish the connection
• The APN (Access Point Name) is incorrect or missing — the APN is essentially the password that allows the device to access the carrier's network. If it is wrong or blank, the device will be unable to register. Contact Pristine Internet support and we can verify or correct the APN for your service.
If you see this message, work through the troubleshooting steps above — particularly checking your antenna connections and trying a hard reset.
Checking Signal Strength (Cells Info)
Click the Cells Info tab on the Internet dashboard to view your live signal metrics.

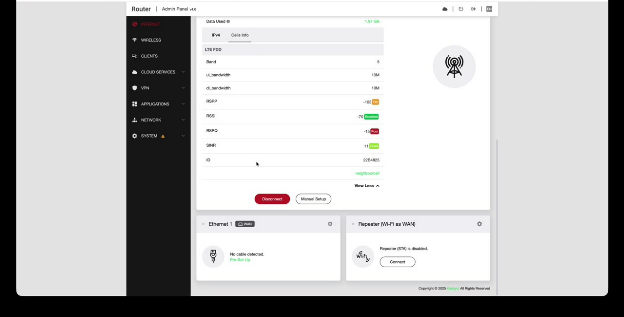

Cells Info tab — RSRP above -100 and SINR above 10 indicate a good quality connection
|
💡 Signal strength tip: RSRP closer to 0 is better (e.g., -80 is stronger than -105). SINR above 10 means a good quality connection. If your numbers are poor, try repositioning the device or contact us about an outdoor antenna. |
Need more help?
Visit pristineinternet.com · Call 1-877-877-7716 · Email contact@pristineinternet.com
Pristine Internet — Katalyst Spark Customer Guide
